Compact, Conduit-Free Design Securing Pipelines Against Surge and Overpressure

Model BTL / BFL, Pilot Control Pressure Relief Valve serves as a safety device to protect pipelines from surge or over pressures. A Pressure Relief Valve maintains safe water supply pressure inside the pipe to prevent sudden increase of pressure that would damage the system by releasing exceeded pressure.

How to adjust Piston Type Pressure Relief Valve?

Step 1: Open upstream valve.

Step 2: Loose the lock nut of the controller adjustment screw and turn adjusting screw counterclockwise until lowest outlet pressure.

Step 3: Pressure gauge on the valve indicate inlet pressure.

Step 4: Adjust the controller adjustment screw clockwise to the pressure required.

Step 5: Fasten up lock nut.

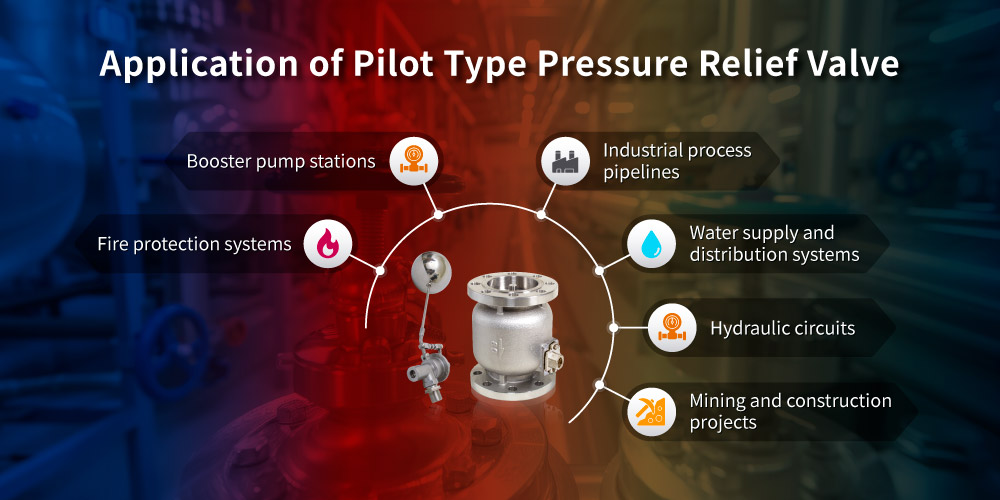

Key Features and Benefits of Piston Type Pressure Relief Valve

• No Conduit, Compact size for easy Transportation, Installation, Maintenance and Repair.
• Releases pressure once pipeline pressure exceed set pressure.
• Pressure Release Valve is suitable for general liquids and gases.
• Convenient in-style mounts either horizontally or vertically.
• Wide range capacity to handle local water supply pressure and adjust to specific pump specifications.
• Adjusting pilot allows easy calibrated pressure adjustment.
• Easy maintenance, maintenance kits are available upon request.

Why Choose Z-Tide Piston Type Pressure Relief Valve for High-Pressure Industrial Hydraulic Systems?

Our Piston Type Pressure Relief Valves are engineered to provide precise and reliable overpressure protection for industrial, municipal, and hydraulic systems.

• Accurate Pressure Relief: Maintains system safety by releasing excess pressure when the inlet exceeds the set-point.
• Piston Design: Ensures long-term durability and reliable performance under high-pressure conditions.
• Conduit-Free and Compact: Simplifies installation, transportation, and maintenance while saving space in pipeline systems.
• Flexible Installation: Can be installed horizontally or vertically to fit various pipeline layouts.
• Wide Material Options: Available in Cast Iron, Ductile Iron, Bronze, SS304 and SS316 for chemical compatibility and corrosion resistance.
• High Flow Capacity: Large internal chamber supports higher flow rates compared to diaphragm-type valves.

Project Reference: Piston Type Pressure Relief Valve at Pakistan Karachi Pumping Station

The customer in Pakistan was looking for a high-flow pressure relief valve suitable for installation at the Karachi Pumping Station. They selected the Z-Tide BFL Piston Type Pressure Relief Valve with conduit-free design.

The 8'' Cast Iron Flange-End Piston Type Pressure Relief Valve provides high flow capacity and reliable automatic pressure release to protect pipelines from sudden pressure surges, fully meeting the customer's needs and expectations. The no external piping design allows for flexible installation, minimizes leakage risks, and ensures long-term stability and safety in water supply operations.

Frequently Asked Questions(FAQ) about Piston Type Pressure Relief Valve

Q1: Are piston type pressure relief valves suitable for high-flow, high-pressure applications?

Yes. Piston-type relief valves are ideal for high-flow, high-pressure systems, offering stable control, fast response, and reliable protection against pressure surges.

Q2: What are the benefits of the "Conduit-Free Design" of piston type pressure relief valve?

The conduit-free design removes external tubing, providing:

• Easier installation, lower leakage risk.
• More compact and durable structure.
• Reduced maintenance.

It ensures safe, clean, and long-lasting operation.
