- Direct Acting Design Valves
-
High flow type Direct Acting Pressure Reducing Valve
Direct Acting Design Valves
RDNT
High flow type Direct Acting Pressure Reducing Valve
Stainless Steel
Thread ¾'' to 2''
1-3 kgf/cm2
NBR sealing ; EPDM diaphragm
Solving High-Rise Series Reduction: High flow type Direct Acting PRV

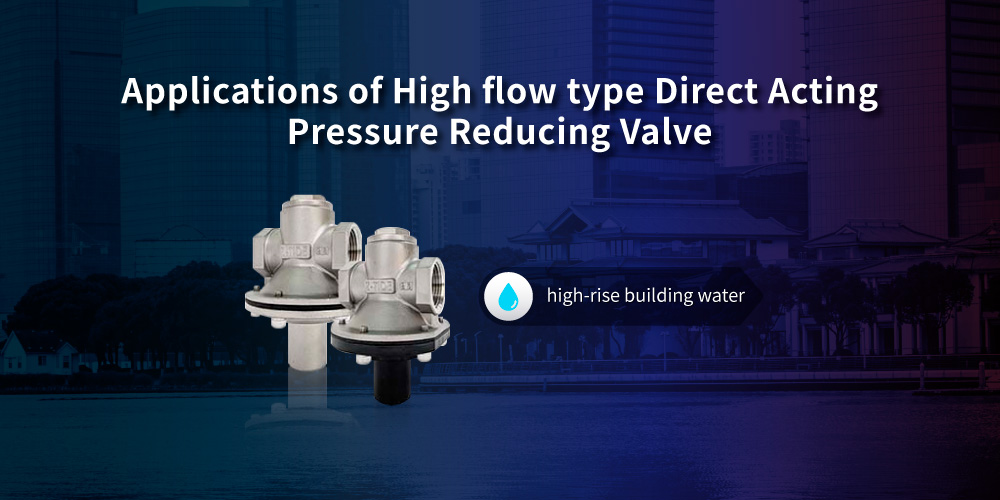

The Model RDNT, is specially designed for series pressure reduction in building water systems, offering minimal pressure loss. A water hammer arrester is suggested to fit at upstream of the system for high-building water system.

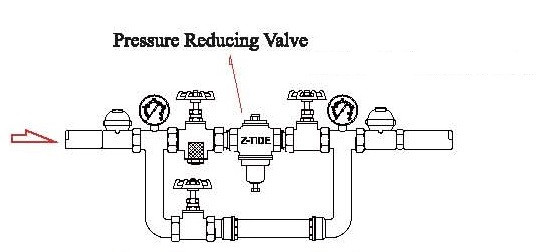

An Illustration Sketch for Installation of Direct Acting Pressure Reducing Valve
Key Features and Benefits of High flow type Direct Acting Pressure Reducing Valve
- Versatile Compatibility: Ideal for a wide range of liquids and gases in various industrial applications.
- Enhanced Flow Efficiency: Reduced pressure loss with higher flow rates.
- Automation-Friendly: Perfect for process automation and general industrial applications.
- Flexible Mounting Options: Can be conveniently mounted horizontally or vertically.
- Precise Pressure Control: The adjustable nut enables easy and accurate calibration of outlet pressure.
- Stable Performance: Balanced piston design ensures a constant outlet pressure, even with fluctuating inlet pressure. A built-in pressure gauge provides clear readings of outlet pressure.
- Low Maintenance: Simple to maintain, with maintenance kits available upon request.
Why choose Z-Tide High flow type Direct Acting Pressure Reducing Valve
The RDNT High Flow Direct Acting Pressure Reducing Valve is featured high flow and less pressure loss. It enhances flow efficiency. It can be installed in horizontal and vertical directions, more flexible mounting options, and space saving for building water system and industrial sectors.
Frequently Asked Questions (FAQ) about High flow type Direct Acting Pressure Reducing Valve
Q1: Is this model also available for air, gas application?
Yes, it can be used on industrial sector for air, gas application.
Q2: Is this model with a built-in strainer?
No, this model is without strainer. Our another model RDST with strainer.
Q3: Does this model also require to install water hammer?
Yes, a Pressure Reducing Valve(PRV) is used to reduce the water pressure and protect the piping system. However, to minimize the impact of sudden pump shut-offs and further safeguard the pipes, installing a water hammer arrester is beneficial for extending the overall lifespan of the water system.
